SKU: 57DI000032

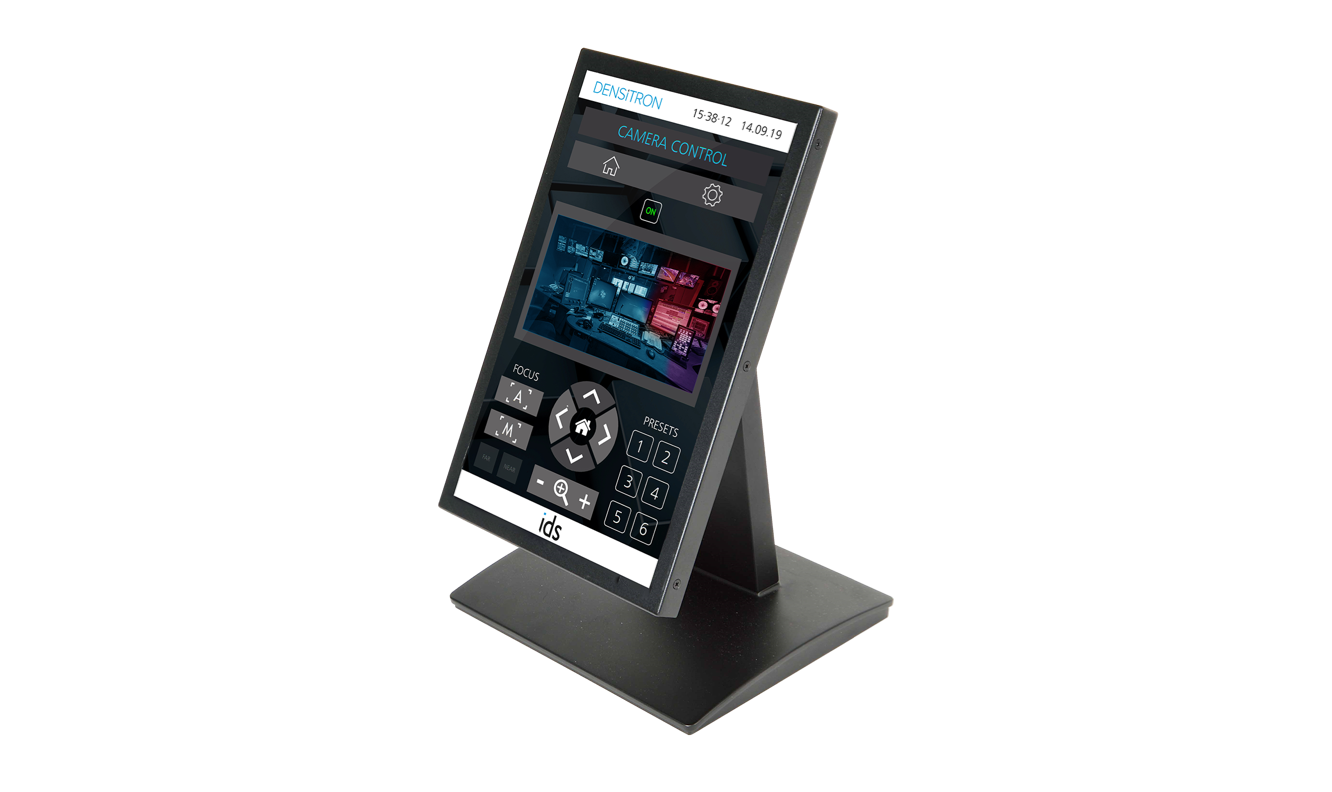

TS 10.1

TS10.1" is a integrated IDS touchscreen with enhanced graphics c/w with optional VESA mount table stand and IDS client software. Supplied with DC PSU.

The IDS Multi-Touchscreen provides a handy and ergonomic user interface to control remote equipment over your IDS network while its powerful display processor delivers all the information and alerts you need to keep your broadcasts running smoothly. Our interactive display is an high contrast and high resolution IPS TFT with 1200 x 1920 resolution.

Housed in a steel enclosure, it can be wall or desktop mounted meaning your control interfaces can be placed exactly where you want them. It connects to your network via Ethernet making installation quick and painless. Management of the unit is straightforward, using IDS Core or via a USB keyboard plugged in directly.


The TS7 - 10.1 is the perfect workflow tool – use it as a production timer or off-set timer, for clocks and tally information or for live visual feedback. Control IDS accessories and other essential equipment connected to your IDS network. Change channels on TVs situated in another studio, control STBs in your master control room, cameras in live studios or respond to noise level alerts from remote monitors. Any number of units can be installed on your system.


450 cd/m²
Contrast Ratio
Display Resolution
1920 x 1200
Display Size
Viewing Angle
L/R: 178" (Typ.) U/D: 178" (Typ.)


Wide Angle Viewing
Touch Panel
Display Tec
10.1" Portrait WUXGA
Desktop Control Surfaces


Dimensions Depth
40.11 mm
Dimensions Height
174 mm
Dimensions Width

Mounting and Connectivity

4x USB (2 x 3.1 + 2 x 2.0), 1x Gigabit LAN RJ-45, 1 x 3.5mm stereo jack - line out
